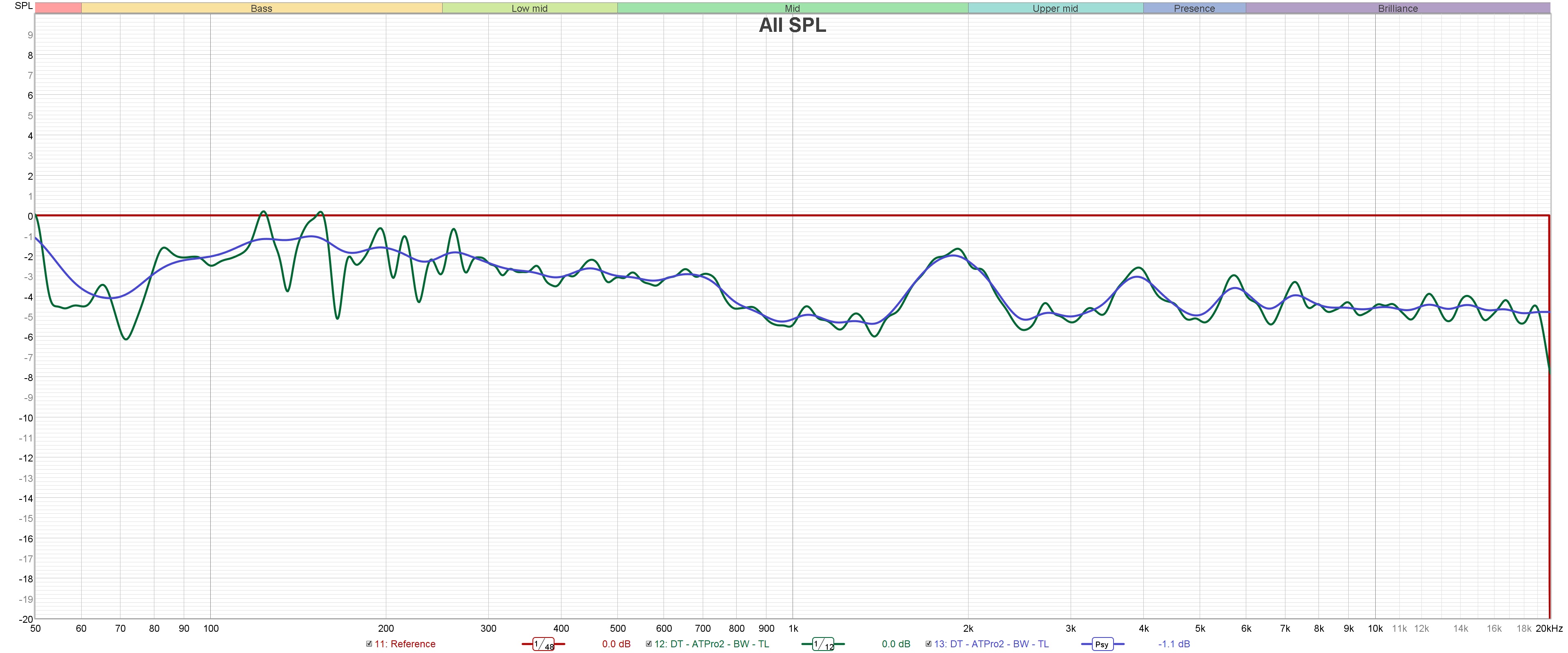

The data below shows the measured transmission loss of our knitted AT Image surfaces.

The speakers was placed 100mm from the rear of the image surface and the microphones were 200mm from the front of image surface, centred on the tweeter axis.

Green Line = 1/12th Octave Smoothed Loss

Blue Line = Psychoacoustically Smoothed Loss

Red Line = 0dB loss reference

AT Ref: -2.0dB @ 10kHz

AT Studio: -2.8dB @ 10kHz

AT Pro: -4.5dB @ 10kHz
